WDGA 58V CAN SAE J1939

Manyetik Absolute Enkoder, CAN SAE J1939 WDGA 58V,
Gıda sektörü için özel
Asit ve bazlara dirençli

Yüksek basınçlı buhar püskürtmeli temizlik
Geçmeli Flanş / Gövde Çapı 58 mm

16/32-bit Single-/Multiturn;
Mil Çapı 10 mm

Veri föyü
Drehgeber WDGA58VSAEJ1939
Öne çıkanlar
  • Tuzlu sprey testi DIN EN 60068-2-11 uyarınca başarılı
  • Koruma sınıfı: IP67 + IP69K (Yüksek basınçlı buhar püskürtmeli temizlik)
  • EnDra®: Bakım gerektirmez, çevre dostu
  • CAN SAE J1939 protokolü
  • 32 bit işlemcili, geleceğe dönük teknoloji
Ürün ayrıntıları
Flanş
Geçmeli Flanş
Gövde
Ø 58 mm
Asil çelik, V4A
Çözünürlük
Singleturn çözünürlük

65.536 adım/360° (16 bit)

Multiturn çözünürlük

kadar 32 bit

Şaft
Ø 10 mm
Şaft uzunluğu: L: 18 mm
Azami şaft yükü, radyal: 100 N
Azami şaft yükü, eksenel: 100 N
Azami çalışma hızı
3600 dev/dak.
Çalışma gerilimi
4,75 VDC ila 32 VDC
Öz güç tüketimi: typ. 50 mA
Güç tüketimi: azami 0,5 W
Çalışma sıcaklığı
-20 °C ila +80 °C
Yatak sıcaklığı
-20 °C ila +80 °C
Koruma sınıfı
Tam IP67+IP69K
STEP Görüntüleyici / STEP dosyaları:

Talep ettiğiniz STEP dosyası belirtilmemiş:
STEP dosyası talebi burada

Tanımlama

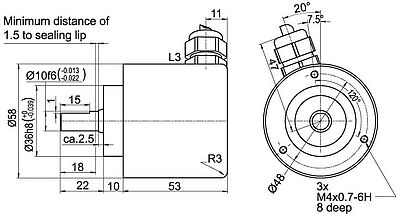

L3radyal, Ekran enkoder gövdesine kabloyla bağlı
Bağlantı tahsisleri
(+) VccBN
GNDOG
CANHighGN
CANLowYE
CANGND/EkranEkran
