SZG60

Draw-wire system Robust Line SZG60

Measuring range: 0 mm up to 1250 mm
output: incremental. CANopen or SSI
IP65 encoder ready-mounted
Housing: Aluminium, anodised, spring case PA6

Veri föyü
Seilzugsystem SZG60
Öne çıkanlar
  • Ball bearing drill protection
  • Measuring rope (stainless steel)
  • Bushing
  • Quick and easy mounting
Ürün ayrıntıları
Tanımlama

The draw-wire encoder SZG 60 was developed for use in harsh environments. It can be used even where space is tight, thanks to its compact dimensions.
The SZG 60 can be mounted quickly and with its highly precise mechanics provides reliable accurate length measurement. The intelligent spring-suspension and the stainless-steel wire cable guarantee long-service life, even in difficult operating conditions. The encoder is already installed.

STEP: SZG600125xxxxSIAG01CB8.stp

Request STEP file
(Please define an encoder type and enter the corresponding order number of the SZG in your STEP file request)

Accessories: Deflection pulley

Ölçüm aralığı

0 - 1250 mm

Çözünürlük
Resolution incrementalOrder No.
4 pulses/mmSZG60012500500ABR24SB8
10 pulses/mmSZG60012501250ABR24SB8
20 pulses/mmSZG60012502500ABR24SB8

Resolution absolute CANopen       Order No.
32.77 steps/mmSZG6001251218COAB00CB5

Resolution absolute SSIOrder No.
32.77 steps/mmSZG6001251212SIAG01CB8
Sinyaller
artımlı
absolute
Çalışma sıcaklığı
artımlı: -20 °C ila +80 °C; absolute: -20 °C ila +85 °C

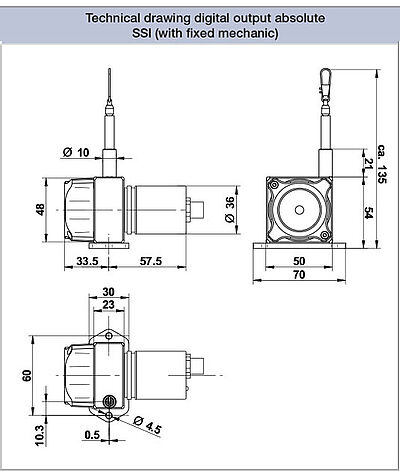

Tüm ölçüler mm'dir


Robuste Seilzugsysteme SZG - Robust Cable Systems SZG
Handout - Robust Cable Systems SZG Robust Line

... precise length measurement from 1,250 mm up to 40,000 mm
​​​​​​​Housing material: Aluminium, anodised, spring case PA6

Handout SZG Pure Line
Handout - Draw-wire systems SZG Pure Line

... precise length measurement from 2,400 mm up to 7,500 mm
Robust glass fibre reinforced plastic housing
